Lagoon 46 Catamaran

lagoon 46 sails uplagoon 46 saloon

Lagoon 46 Catamaran

Dimensions & Specifications


Brochure

  • Naval architects: VPLP Design
  • Exterior design: Patrick le Quément
  • Interior design: Nauta Design
  • Overall length: 13.99 m / 45’11”
  • Overall beam: 7.96 m / 25’10”
  • Draft: 1.3 m / 4’3″
  • Mast clearance: 23.987 m / 78’8″
  • Light displacement (EEC): 16.6 t / 36,603 Lbs
  • Sail area: 140.1 m² / 1,507 ft²
  • Full-batten mainsail: 87 m² / 936 ft²
  • Square top mainsail (opt.): 89.6 m² / 965 ft²
  • Engine (std): 2 x 45 to 2 x 57 CV/HP CR
  • Fuel: 2 x 520 l / 2 x 137 US gal
  • Fresh water: 2 x 300 l / 2 x 79 US gal
  • No. of berths: 6 to 12
  • EC certification: A: 12, B: 14, C: 20, D: 30

Lagoon 46 Catamaran

The “perfect long-term cruising catatmaran” springs to mind when you step aboard the Lagoon 46. Easy responsive performance and functional luxury awaits you. Seaworthiness and performance are marks of this model given her:

  • Increased sail area and displacement ratio thanks to a larger sail plan
  • A very high aspect ratio thanks to the VPLP design racing results that proved moving the mast moved back was a good design choice
  • Combining a shorter boom and self-tacking jib, trim the mainsheet car through an electrical flatwinder
  • Improved performance in downwind sails provided by a very long J

Lagoon 46 Video

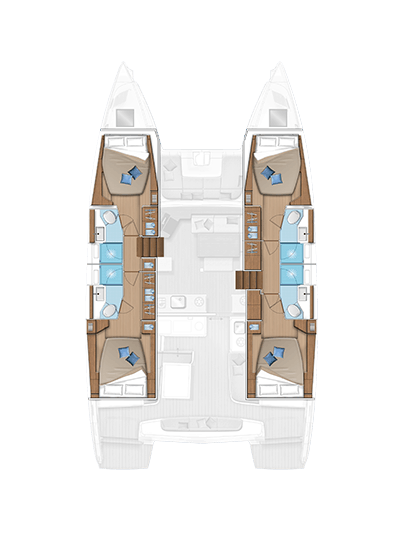

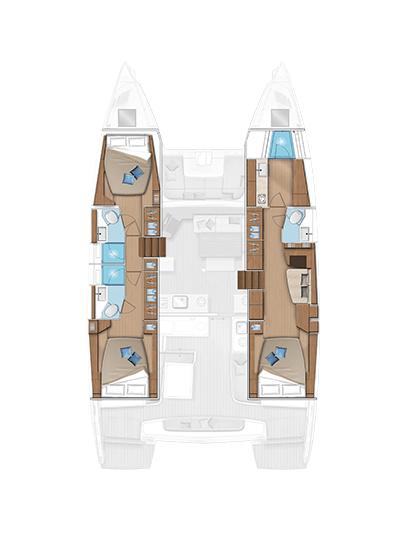

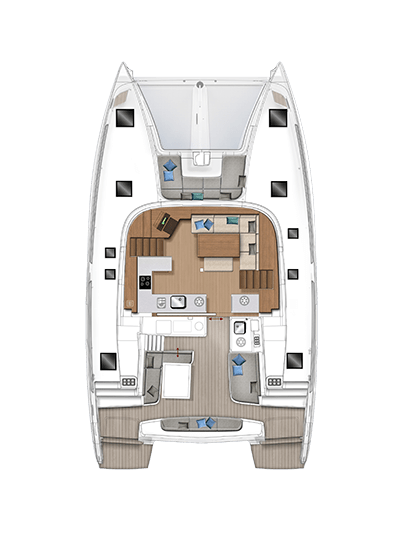

Lagoon 46 Layouts



More Lagoon 46 Pictures
