Lagoon 400 S2 Catamaran

lagoon 400 s2 catamaran

lagoon 400 s2 is an interior redesign of the original Lagoon 400

Lagoon 400 S2 Catamaran

Available used only, for new boats, see Lagoon 40

Dimensions and Specifications

Specifications | Brochure

  • Naval architects: Marc Van Peteghem / Vincent Lauriot Prévost
  • Overall length: 39’3”
  • Length on waterline: 37’7”
  • Overall beam: 23’9″
  • Draft: 4’00”
  • Mast clearance: 66’7”
  • Light displacement (EEC): 22817 lbs
  • Full-batten mainsail: 603 sq. ft
  • Square top mainsail (optional): 651 sq. ft
  • Furling genoa: 301 sq. ft
  • Optional gennaker: 818 sq. ft
  • Fresh water capacity: 79 US Gal.
  • Fuel capacity: 2 x 53 US Gal.
  • Engine: 2 x 29 HP
  • Interior finish: Light oak alpi and non skid and laminated wenge for the wood floor
  • EEC certification: A for 10 persons

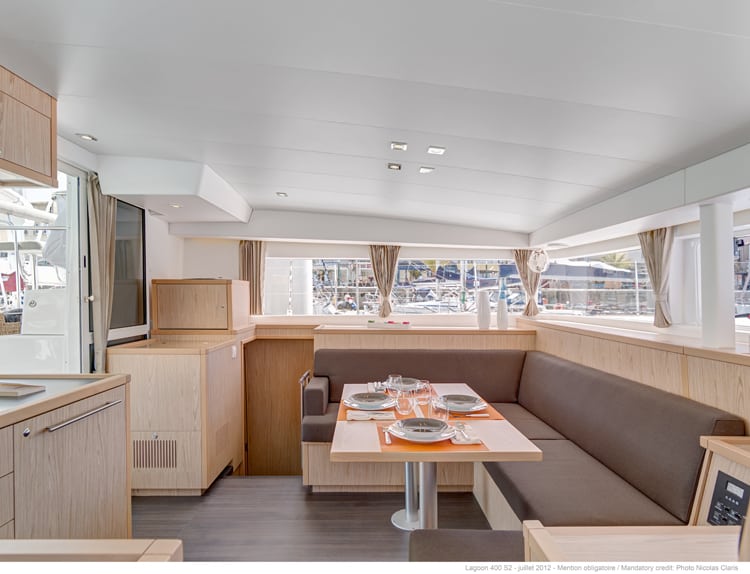

Nauta Design was tasked with redesigning the interior of the 400 and the result is the stunning 400 S2. The 400S2 is a warmer with a more comfortable feel, which has been achieved by the use of more wood and fewer white fiberglass surfaces. The new Alpi wood veneer has a deeper, richer grain pattern and the overall look is fresh and stylish. The saloon/galley layout make much better use of the available space. The main fuse panel is now behind the galley console, allowing the electrical panel (as it was before) to house a chest freezer without compromising the storage space in the galley area. The dining table has the provision for seating on three sides, which is more social than the previous L-shaped arrangement. Below, the aft double beds have been widened at the foot, with a step on one side for easy access and the owner’s accommodation in the 3-cabin version has been improved. Outdoors she’s unchanged, with the same fantastic ergonomics and sprightly sailing characteristics that have already made the 400 such a great success.
